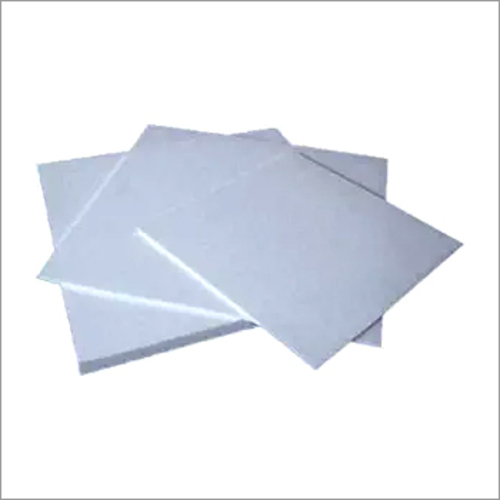

TEF- LON SHEET

Name: TEF- LON SHEET
Brand: Angel Engineering Co.
Price: 1200.0 INR
Availability: InStock

Price 1200.0 INR/ Box

Get a Price/Quote

MOQ : 1 Box

TEF- LON SHEET Specification

Purity
99% PTFE

Dimension (L*W*H)
Standard up to 1000 mm x 1000 mm or custom

Feature
Non-stick, high temperature resistance, chemical inertness

Grade
Virgin & Reprocessed

Application
Electrical insulation, gasket, chemical lining, sealing, non-stick surface

Product Type
PTFE Sheet / Teflon Sheet

Material
PTFE (Polytetrafluoroethylene)

Standard
ASTM, DIN, ISO, JIS

Shape
Sheet / Plate

Surface
Smooth, Glossy, Non-Stick

Technics
Molded / Skived

Pressure
Low to High Pressure Resistant

Size
1 mm to 100 mm thickness; custom sizes available

Color
White

Odor
Odorless

Coefficient of Friction
0.04 to 0.10

Packing
Standard Export Packaging / As Required

Elongation at Break
>200%

Compliance
FDA, RoHS, REACH

Maximum Width
Up to 1200 mm (customization possible)

Temperature Resistance
-200C to +260C continuous

Tensile Strength
>15 MPa

Flame Retardancy
UL94 V-0

Hardness
Shore D 50-60

Water Absorption
<0.01%

Density
2.1 to 2.2 g/cm3

Dielectric Strength
60 kV/mm

About TEF- LON SHEET

Discover why our TEF-LON SHEET is a must-have for professionals seeking reliable performance in demanding environments. This popular and sought-after sheet features an uncommon blend of 99% pure PTFE, boasting heroic characteristics such as temperature resistance from -200C to +260C, dielectric strength of 60 kV/mm, and superior flame retardancy (UL94 V-0). With a non-stick, smooth, and glossy surface backed by FDA, RoHS, and REACH compliance, these sheets cater perfectly to electrical insulation, gaskets, sealing, and chemical lining. Order today for tailored sizes, exceptional durability, and unbeatable quality.

Versatile Applications & Easy Method of Use

TEF-LON SHEET is the ideal solution for electrical insulation, gasket fabrication, chemical lining, sealing, and providing a non-stick surface. Its smooth, glossy texture makes it suitable for surfaces in electronics, chemical plants, and food processing equipment. Applying TEF-LON SHEET is straightforward-simply cut to the desired size, place, and secure for long-lasting performance. Its stable nature supports both static and dynamic applications across a variety of industries.

Reliable Supply, Flexible Payment, and Sampling Options

Our TEF-LON SHEET is shipped across India and internationally, utilizing secure goods transport methods to ensure each product reaches you promptly. We offer flexible payment terms suited to your business requirements, with options for advance, part-payment, or exchange on large orders. Customers can also request samples before making full-scale purchases, enabling complete confidence in product performance.

FAQ's of TEF- LON SHEET:

Q: How do I select the right thickness and size of TEF-LON SHEET for my application?

A: You can choose from standard thicknesses of 1 mm to 100 mm and custom sizes up to 1000 mm x 1000 mm, depending on your specific requirements. Our team can assist with selection based on your application's mechanical and environmental demands.

Q: What are the main benefits of using TEF-LON SHEET in industrial applications?

A: TEF-LON SHEET offers outstanding chemical resistance, high temperature endurance, excellent dielectric strength, and a super-smooth, non-stick surface. Its flame retardancy and low water absorption ensure long-lasting, reliable performance in demanding situations.

Q: Where is TEF-LON SHEET typically used?

A: It is commonly used in electrical insulation, gasket manufacturing, sealing, chemical tank lining, non-stick surfaces in industrial kitchens, and as protective barriers in corrosive environments.

Q: What is the process for ordering and receiving TEF-LON SHEET?

A: You can place your order by contacting our sales team. Once specifications and payment details are confirmed, your sheet will be shipped using trusted goods transport. Lead times vary depending on the order size and customization.
